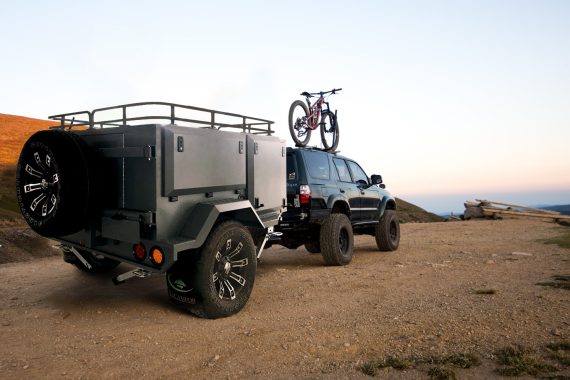

Model B Camper Trailer

Interior

Sleeping Configuration:

• Sleeps 2
• 1x roof top tent
• 1x spring mattress

Batteries:
Maintenance Free Battery

Floor:
Wood

Lights:
LED Light

Exterior

Material:
Galvanized sheet

Roof top tent:
2400 (L) * 1400 (W) top tent

Chassis:
Steel+Hot Dipped Zinc Fully Galvanized

Suspension: Independent Suspension System

Tires:
265x75xR16 Off-Road Tires with Two Spare Tires

Wheels:
16″ Alloy Wheels with a Black Powder Coated Finish

Brakes:
12″ Electric Tow Brake with Mechanical Handbrake Breakaway System Include 2x

MEASUREMENTS

Height of Chassis From Ground:
590mm(Drawer Bar)

Internal Dimensions:
3450L*1800W*1700H/mm

ATM: 2000 KG
GTM: 1800 KG

Plumbing

Shower:
Outdoor Shower with attachable Privacy Tent & Interior Full Fiberglass Shower enclosed with ventilation

Sink:
Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink

Toilet:
Portable Toilet

Water Tanks:

• Fresh Water:
  80L stainless steel water tank
• Grey Water:
  60L stainless steel water tank
• Hot Water:
  Hot Water System

Drawer Bar:
Welding, Saqure Tube Size 150*50*3.0mm

Front Jockey Wheel:
Left Lifting Type

Kitchen & Sink:
This camper trailer comes with a sliding-out kitchen setup and a sink. You can cook and enjoy your favorite food with your family or friends, and after that, a sink is available to wash the dishes for the next meal.

Appliances

Fridge:
Alpicool 50L 12V

Outdoor Propane Stove

Entertainment System:
MP3 Player
Internal Stereo*2

Safety:
Fire Extinguisher, Smoke Alarm and Propane/CO Detector

Refrigerator:
To store the food items of the end-user, we have put a refrigerator in place with a capacity of 50L in the trailer.

Fresh Water Tank:
A freshwater tank is also placed in the expedition camper with a capacity of 80L that you can use to store the water for drinking and washing.

Gas Bottle Holder:
Two 9kg gas bottles holder are given with the caravan that can be used to hold gas cylinders according to required consumption when families travel to adventure.

Electrical

Electrical System:
12V/ 110V Electrical System

Battery:
2x 100AH

Solar:
2x Roof Mounted 150 Watt Solar Panels

Internal Lighting:
LED Reading Lights in Bedroom

External Lighting:
Wide Angle Side mounted LED Flood Lights Front & Rear LED Light Bar
