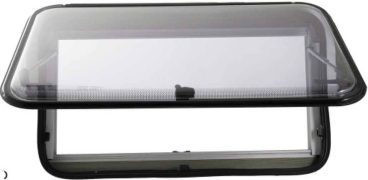

MG17RW-WF – RV Frame-less Window

The windows are made of high quality aluminum alloy with a black powder-coated finish. There is a positive locking latch for security, and the ventilating panel is screened to let air in and keep bugs out.

Product Description

Main Material:
- high quality aluminum hinge Double glazing acrylic glass
Color:
- back hinge, transparent gray glass
Maximum Opening Angle: 70 degree
Fitting:
- adjustable, 25-35mm Other thickness
- can be customized
Features:
- Window glass part and inner frame can be installed separately
- Two type inner frame with anti-insect net and sun blind for choosing
- Easy for opening and closing
- Applied two types optional support bars to make sure the windows to be open and stopped in several positions Large range of sizes for choosing

Functions

Open, close, ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window open.

Application

Motorhome, caravan, trailer etc.

Specifications

Ser	Ordering Size (WXH.mm)	Cut Hole Size (WXH.mm)	Overall Size (WXH.mm)
1	350X500	350×500	400×550
2	500X350	500X350	550X400
3	500X450	500X450	550X500
4	500X500	500X500	550X550
5	500X550	500X550	550X600
6	500X600	500X600	550X650
7	600X600	600X600	650X650
8	700X400	700X400	750X450
9	800X500	800X500	850X550
10	900X450	900X450	950X500
11	900X500	900X500	950X550
12	1000X500	1000X500	1050X550
13	1000X600	1000X600	1050X650
14	1000X800	1000X800	1050X850
15	1100X450	1100X450	1150X500
16	1100X550	1100X550	1150X600
17	1200X500	1200X500	1250X550
18	1450X550	1450X550	1500X600
